Get started with Agilex 5 SoC FPGA(B32A) SOM Development Platform
Unpacking
Remove the Development Platform from box and place above the ESD free area. Use anti-static pad/mat with proper grounding to place the Development Platform. Also make sure that, below deliverables are received without any physical damage.
Development kit contains:
- Agilex 5 SoC FPGA(B32A) SOM Development Platform
- 12V, 5A Power Supply
- USB Debug cable
Agilex 5 SoC FPGA(B32A) SOM Development Platform
12V, 5A Power Supply
USB Debug cable
Get to know

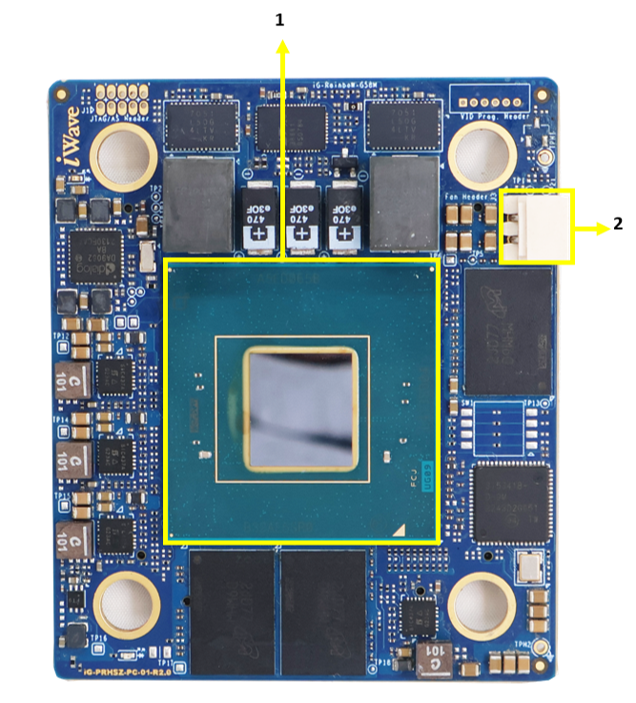

Agilex 5 SoC FPGA(B32A) SOM – Top view
- Agilex 5 SoC FPGA (B32A)
- Fan connector

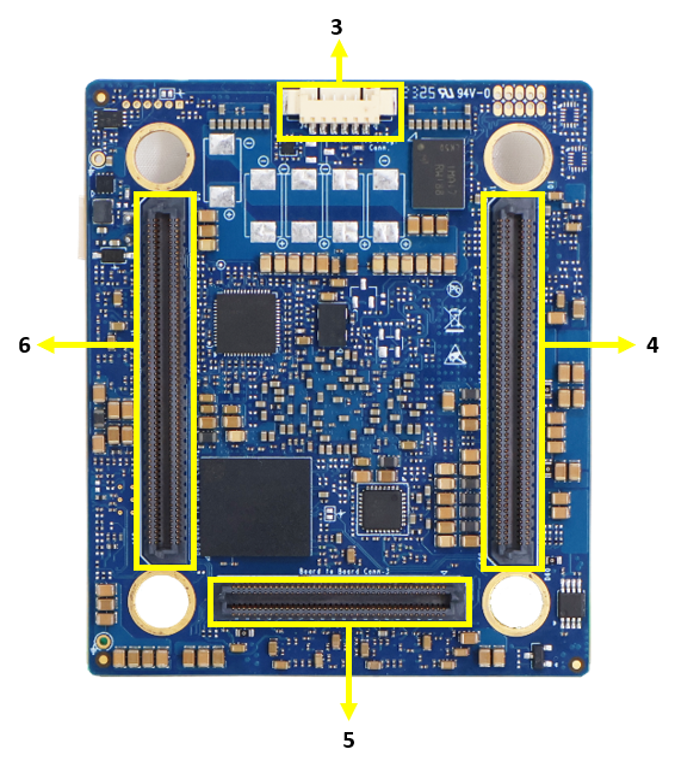

Agilex 5 SoC FPGA(B32A) SOM – Bottom view
3. PMIC Programing Header
4. Board to Board connector 1
5. Board to Board connector 3
6. Board to Board connector 2

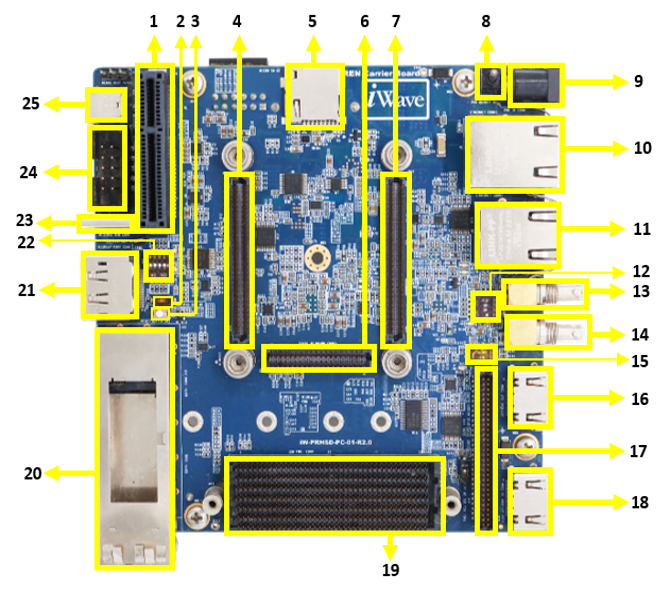

Agilex 5 SoC FPGA(B32A) Development Platform – Top view
1. PCIe x4 Connector
2. JTAG SEL Switch
3. RESET Switch
4. Board to Board Connector 1
5. Micro SD Connector *
6. Board to Board Connector 3
7. Board to Board Connector 2
8. ON/OFF Switch
9. Power Jack
10. SGMII Ethernet Jack
11. RGMII Ethernet Jack
12. Boot Media Selection
13. SDI OUT
14. SDI IN
15. GPIO DIP Switch
16. HDMI OUT
17. GPIO Header
18. HDMI IN
19. FMC+ Connector
20. QSFP Connector
21. Display Port
22. LS_MUX/PCIE_SEL-Switch
23. Debug UART Connector
24. JTAG Connector
25. USB Type C Connector

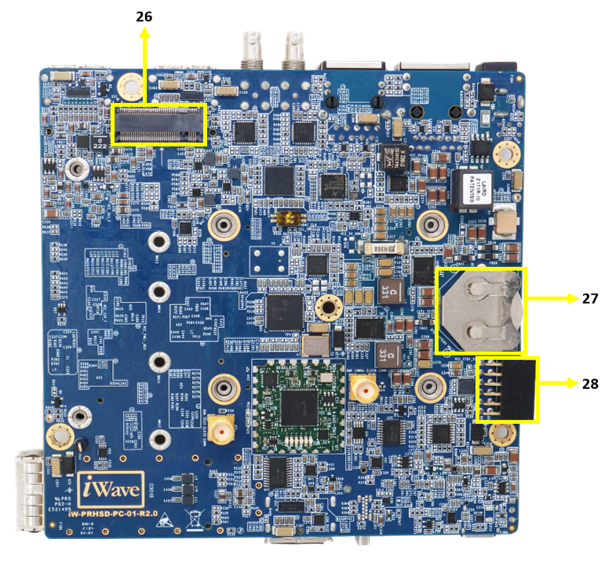

Agilex 5 SoC FPGA(B23A) Development Platform – Bottom view
26. M.2 SATA **
27. RTC Battery Holder
28. PMOD Connector
*Optional
**Not Supported
Boot Switch Setting

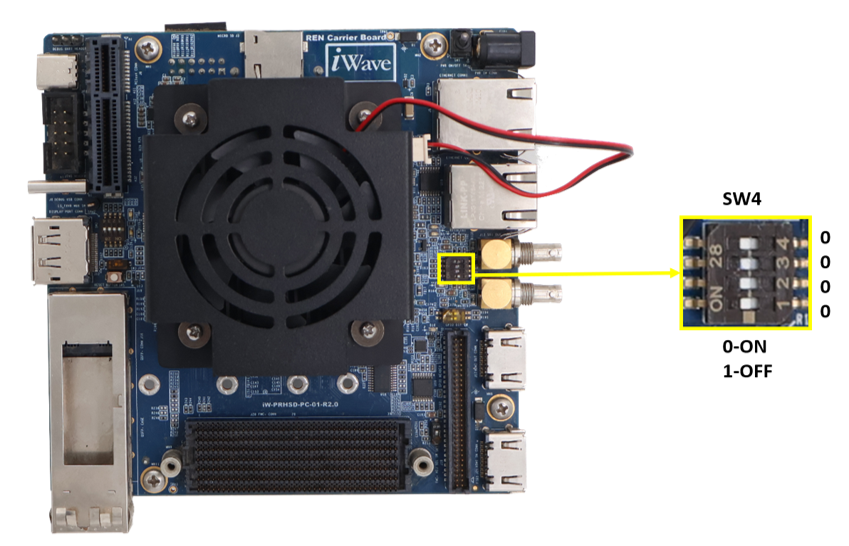

Make sure On-Board Switch (SW4) is set properly as shown below image.
SW4-Boot selection Switch

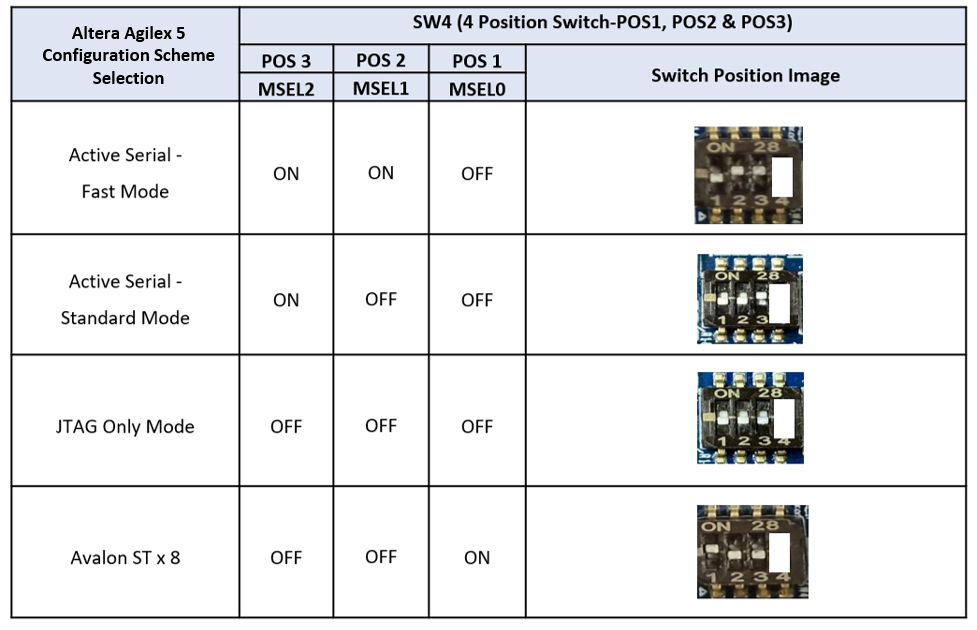

Configuration Selection Truth Table
Debug Port Setting

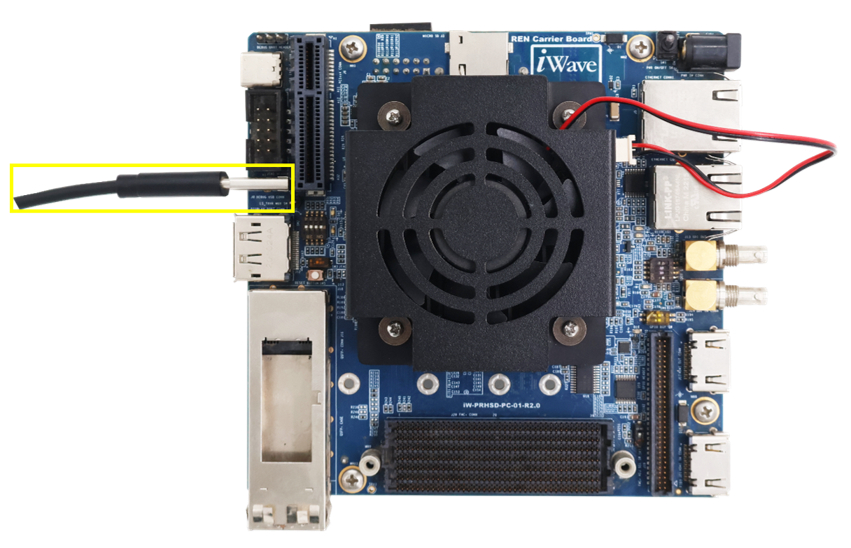

Connect Type-A end of USB cable to PC and Type-C end of USB cable to Development platform’s debug USB Type-C connector(J8) as shown below.
Setup the Debug Terminal parameters.
Baud Rate : 115200
Data bits : 8
Parity : None
Stop Bits : 1
Powering ON

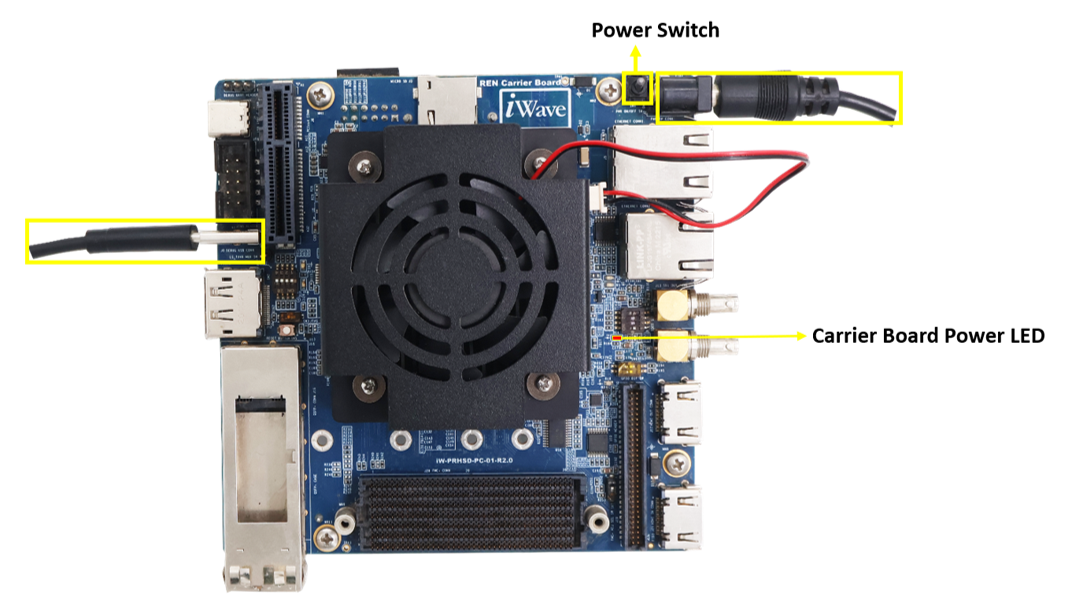

Connect the Power supply plug to the Power connector (J2) of the Development platform as shown below and switch ON the power supply. Once power is applied to the Development platform, the power LED in the Development platform will glow as shown in the below image.
Warning:
- Do not try to connect any other Power Supply other than supplied along with Agilex 5 SoC FPGA(B32A) SOM Development Platform.
- Do not plug or remove the Agilex 5 SoC FPGA(B32A) SOM from carrier board with live power.
- Contact iWave, if power LEDs are not glowing.
Test Environment setup

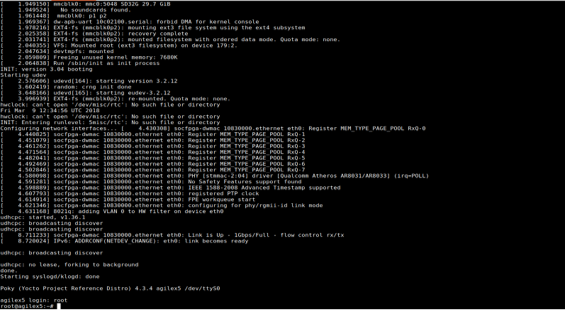

Once power is applied to the Development Platform as explained in the previous section, boot messages being displayed in the debug terminal of the PC/Laptop which is connected to the Development platform. Press any key in terminal immediately to see the command prompt of the Boot loader or wait until OS boots. After OS boots, Login prompt being displayed in the debug terminal. Enter username and password as “root” to get the Linux command prompt as shown below.
Command Prompt
JTAG Connection

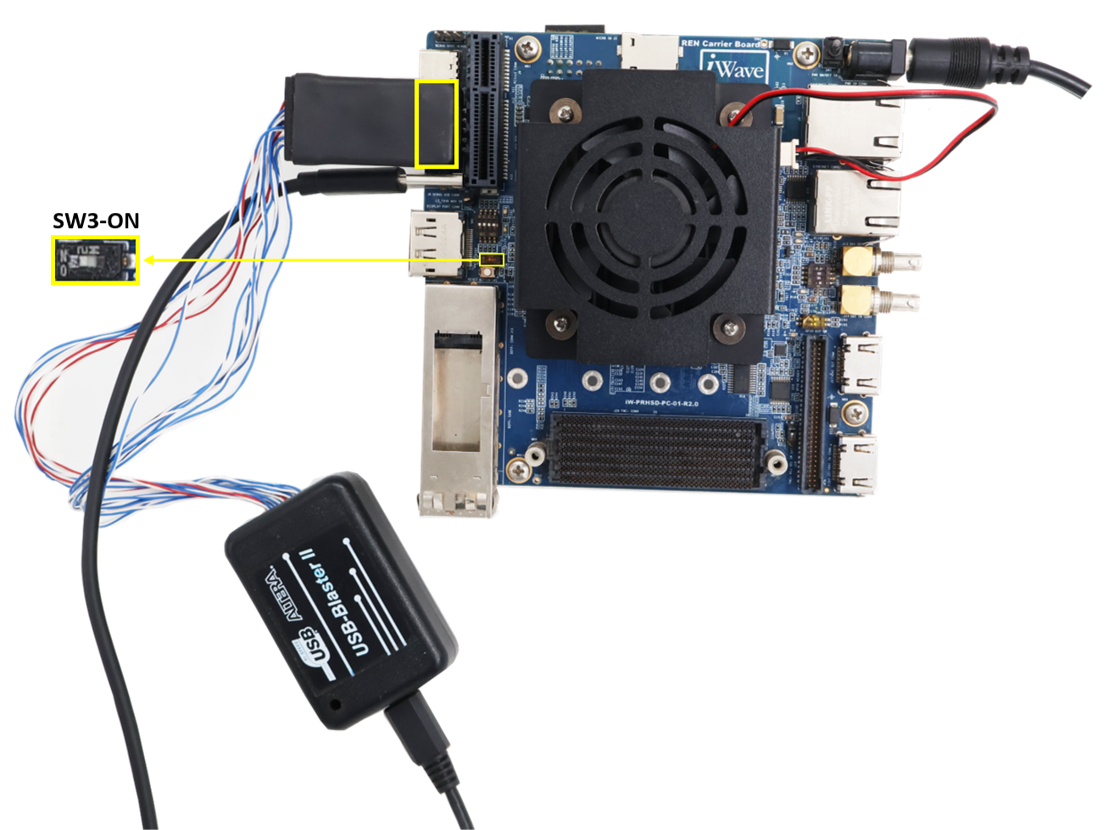

iG-RainboW-G58D Agilex 5 SoC FPGA(B32A) SOM Development platform support JTAG interface for FPGA Programming and debugging. Use the USB Blaster to connect Carrier Board. Ensure that Switch-3 on the carrier board is turned ON.
Example USB Blaster which is tested with this Platform is mentioned below.
USB Blaster-2
Part Number : PL-USB2-BLASTER from INTEL
