ZU49/ZU39/ZU29DR RFSoC System on Module

iG-G42M®

Zynq^TM UltraScale+^TM RFSoC family Compatible with ZU49/ZU39/ZU29DR devices
Up to 930K Logic cells & 425K LUTs
PL GTY High Speed Transceivers x 16 @28.21 Gbps
16 ADC Channels support up to 2.5Gsps
16 DAC Channels support up to 9.85Gsps
Integrated RF Clocking & Synchronization

CONTACT SALES

ZU49/ZU39/ZU29DR RFSoC SoM

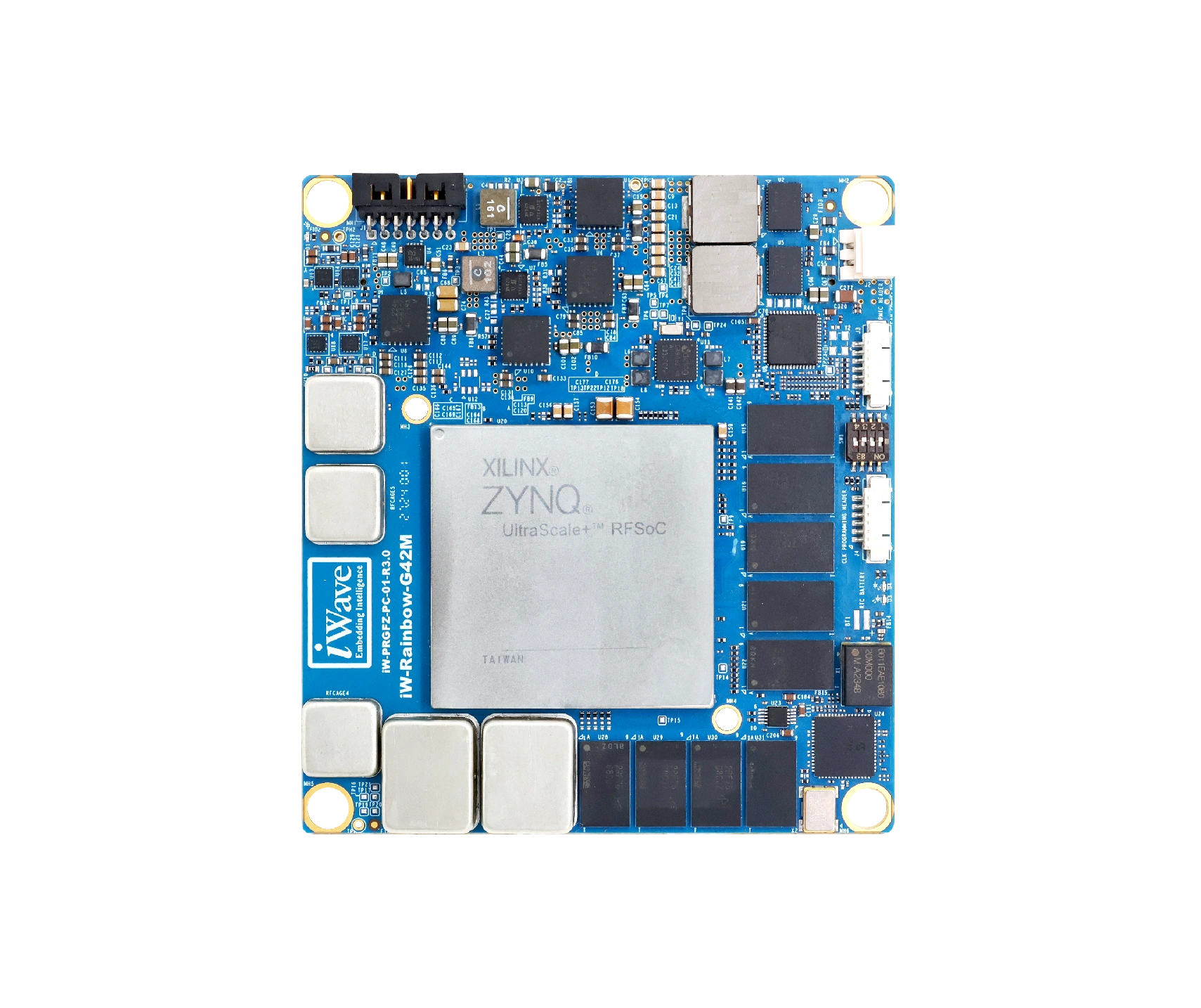

Top View

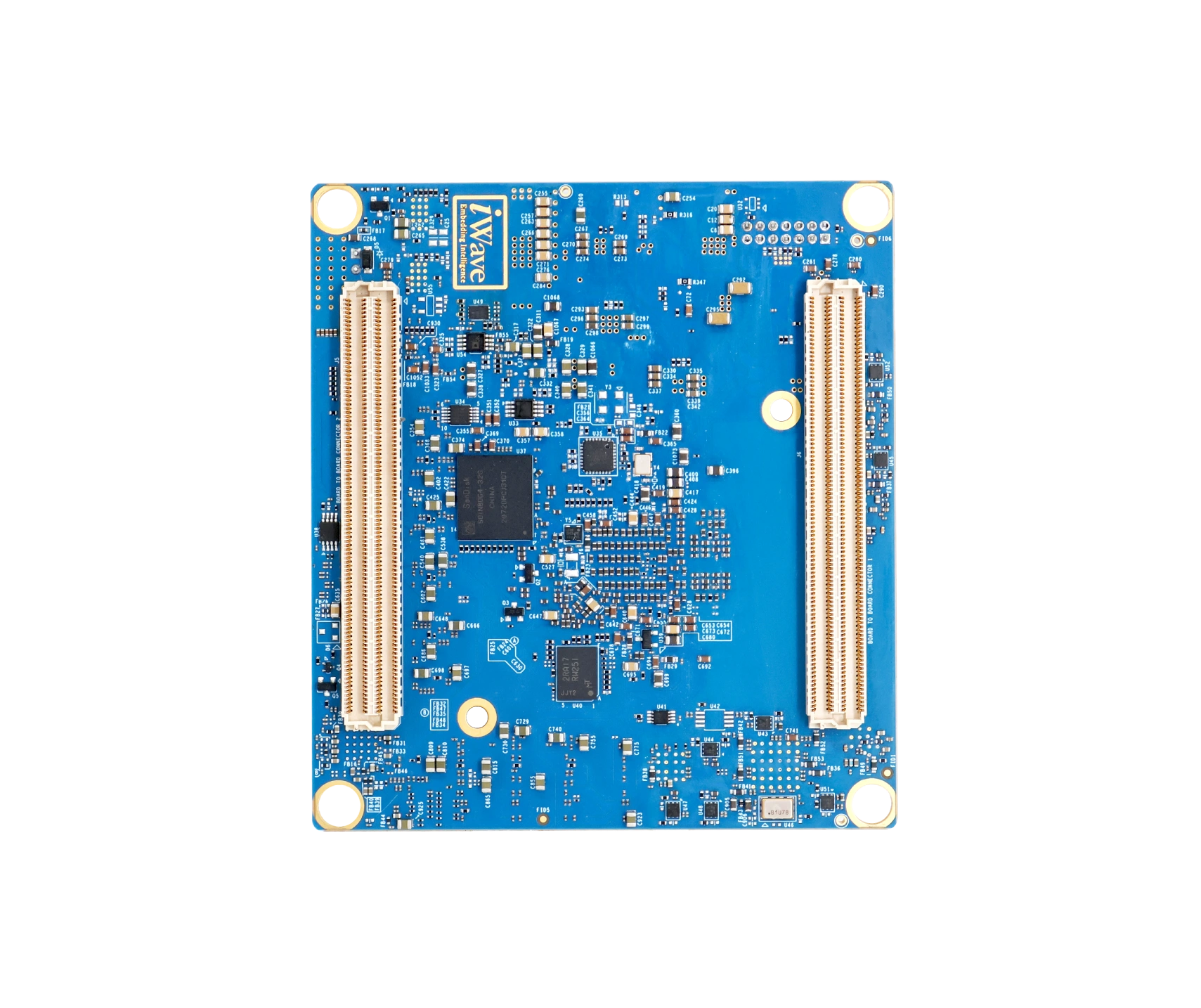

Bottom View

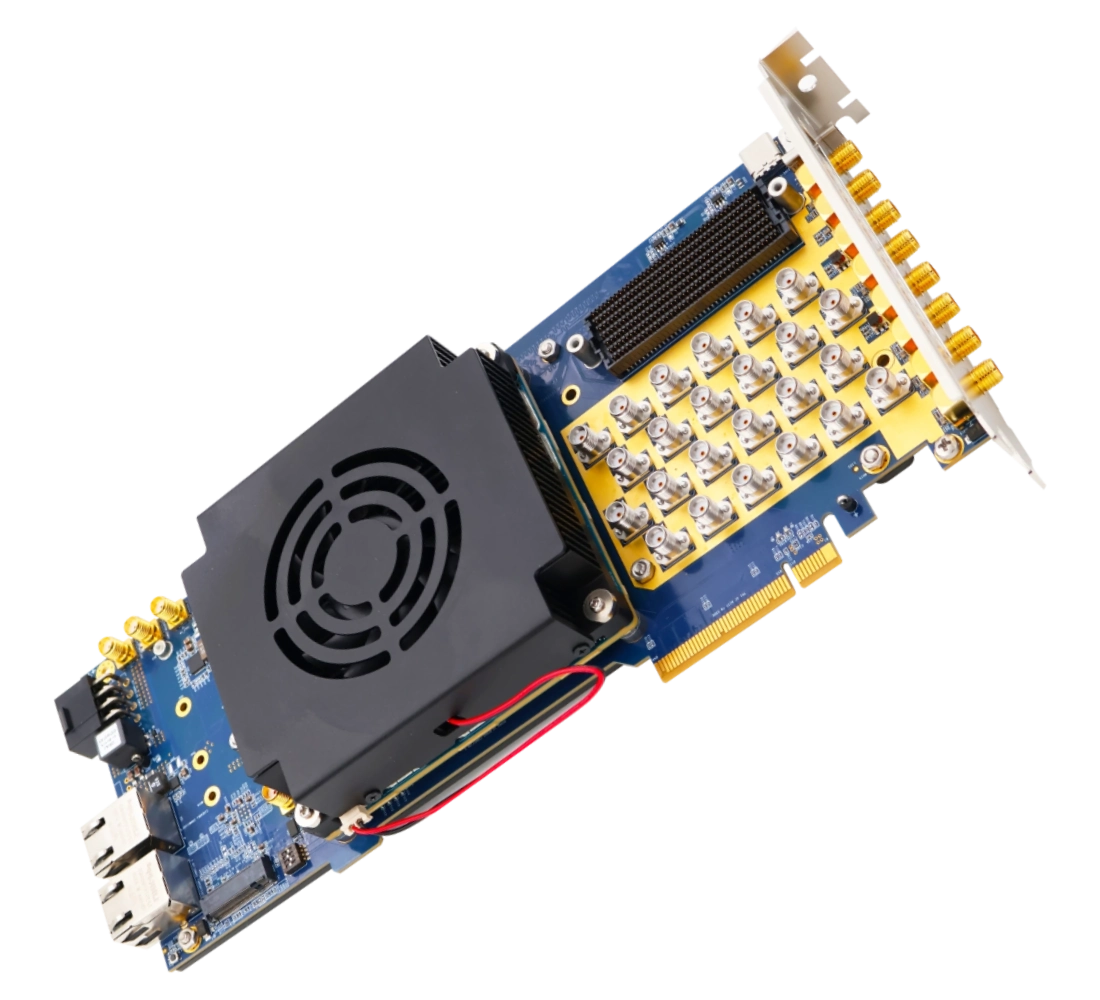

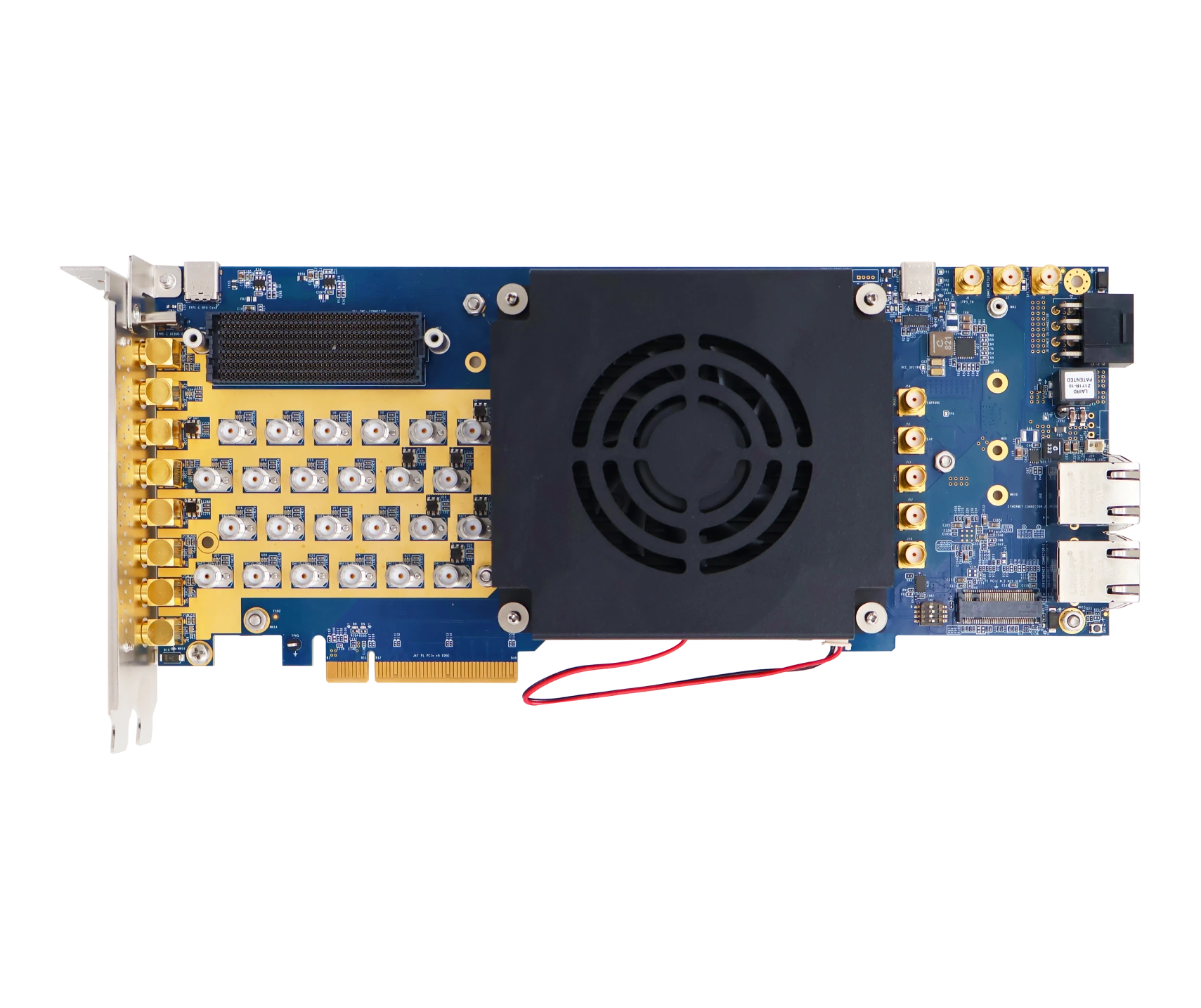

RFSoC PCIe Card

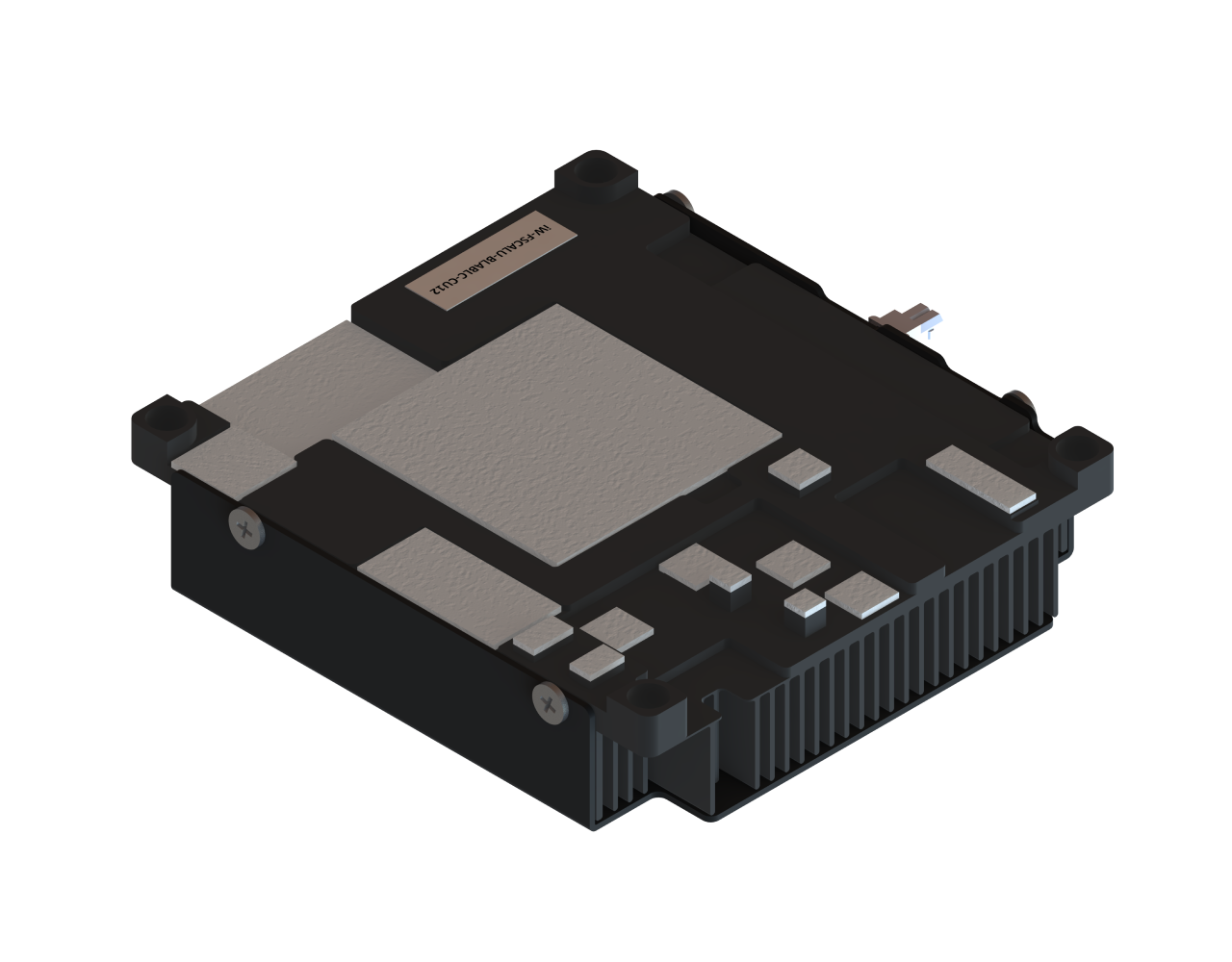

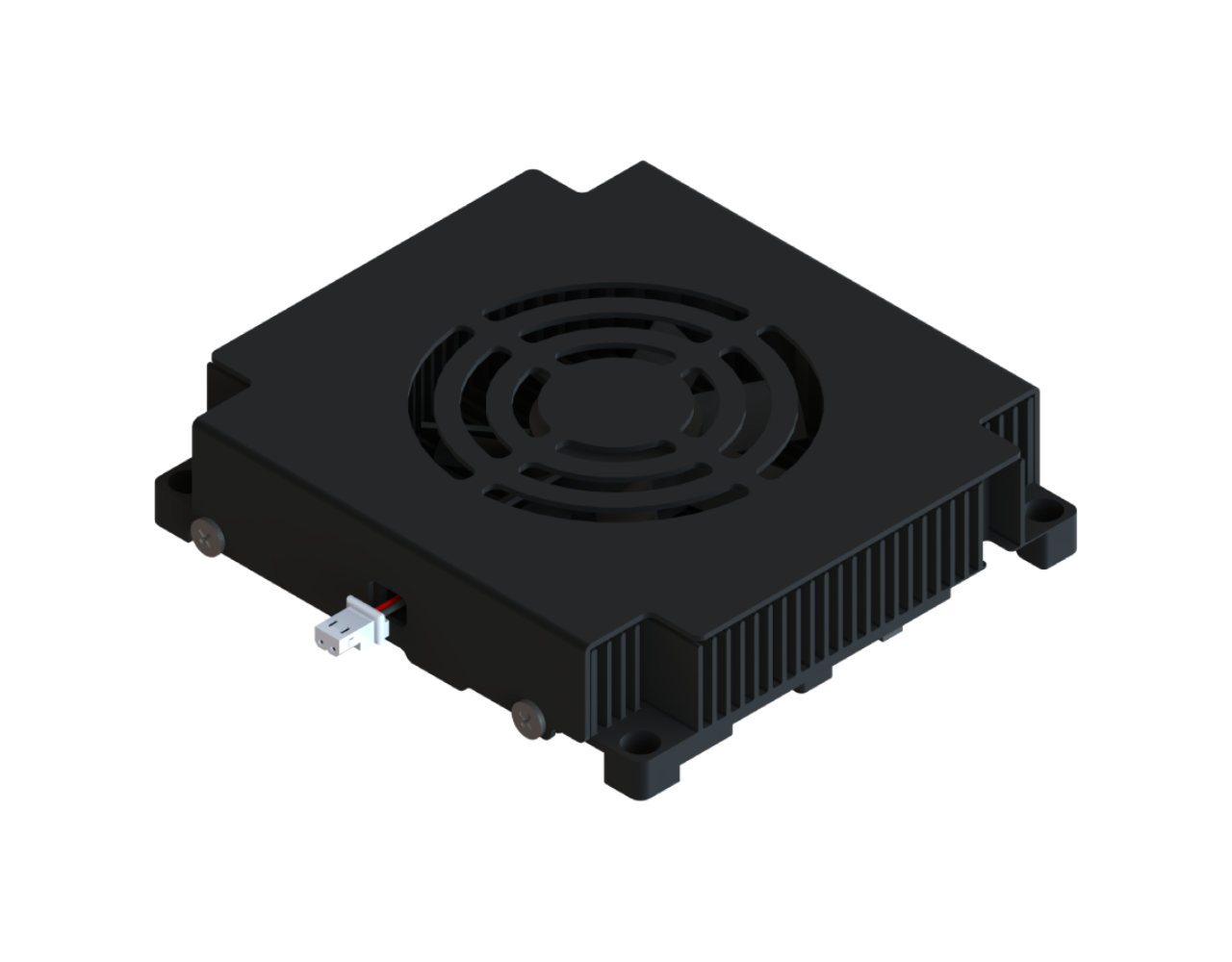

Thermal Solution

Documents

Features	Details
SoC	RFSoC ZU49/ZU39/ZU29DR (FFVF1760 Package) Processing System (PS) Quad Arm Cortex-A53 @1.3GHz, Dual Cortex-R5F @533MHz Programming Logic (PL) Up to 930K Logic cells & 425K LUTs PL GTY High Speed Transceivers x 16 up to 28.21 Gbps
Memory	8GB DDR4 RAM for PS with ECC 8GB DDR4 RAM for PL
Storage	32GB eMMC Flash Expandable up to 128GB 256MB QSPI and EEPROM
Board to Board Connector1 Interfaces (400pin)	ADC: 16 x ADC Channels up to 2.5Gsps DAC: 16 DAC Channels up to 9.85Gsps PL Ios: PL IOs – 188 IOs HP Bank IOs – up to 70LVDS/140SE HD Bank IOs – up to 24DIFF/48SE
Board to Board Connector2 Interfaces (400pin)	From PL Block 16 x PL-GTY High Speed Transceivers (up to 28.21Gbps) From PS Block Gigabit Ethernet x 1 Port (through On-SOM Gigabit Ethernet PHY) USB 2.0 OTG x 1 (through On-SOM USB2.0 transceiver) SPI/QSPI X 1 Port (Optional) CAN x 1, I2C x 2, SD x 1 Debug UART x 1, Data UART x 1 PS JTAG RGMII Interface or ULPI Interface x 1 PS -GTR High speed Transceivers x 4 (up to 6Gbps) PS-Control Signals SYSMON(Optional) Clock signals 10MHz Clock IN 1 PPS IN 10 MHz Clock out 1 PPS Clock Out
Software Features	Yocto Linux BSP with Vivado support DMA/BRAM test apps PYNQ prototyping support Multi-tile sync & PCIe (XDMA) validated MATLAB support
General Features	Power Input: 12V through B2B Connector2 Form Factor: 100mm x 90mm (BRYN) Operating Temperature: -40°C to +85°C (Industrial Grade) Environment Specification: REACH & RoHS3 Compliant Compliance: CE*

DAC Specification:

1 x Right Angle SMA connector on Front Panel with Balun (BW 10MHz to 3GHz)
3 x Right Angle SMA connectors on Front Panel with Balun (BW 3.1GHz to 5.8GHz)
3 x Straight SMA connectors with Balun (BW 10MHz to 3GHz)
9 x Straight SMA connectors with Balun (BW 3.1GHz to 5.8GHz)

ADC Specification:

1 x Right Angle SMA connector on Front Panel with Balun (BW 10MHz To 3GHz)
3 x Right Angle SMA connectors on Front Panel with Balun (BW 3.1GHz To 5.8GHz)
3 x Straight SMA connectors with Balun (BW 10MHz To 3GHz)
9 x Straight SMA connectors with Balun (BW 3.1GHz To 5.8GHz)

High Speed and Interface Specifications:

PCIe x8 Edge Connector up to Gen4.
FMC+ High Pin count (HPC) connector
4 SMA Straight angled connector for Clocks (10MHZ-IN/OUT, 1PPS-IN, SYS-CLK IN)
4 SMA Straight angled GPIO connectors
NVMe PCIe Gen2 x2 M.2 Connector
Gigabit Ethernet through RJ45MagJack x2
Debug & DATA UART/JTAG through Type-C Connector
Operating Temperature: -30°C to +85°C
Form Factor: 254mm x 111.15mm (3/4 Length PCIe Card)

Buy Now

Thermal design is a crucial factor for highly integrated System on Modules. iWave offers Heat Spreader and Fan Sink solutions for RFSoC-based SoMs to ensure optimal thermal management.

Buy Now

RF-ADC/DAC Customization

Tailor resolution, sampling rates, and channel configurations to match your signal processing and bandwidth needs.

Learn More

Interface Integration

Optimize JESD204B/C, high-speed serial links, and RF front-end connections for seamless system-level integration.

Learn More

Rugged & Military-Grade Designs

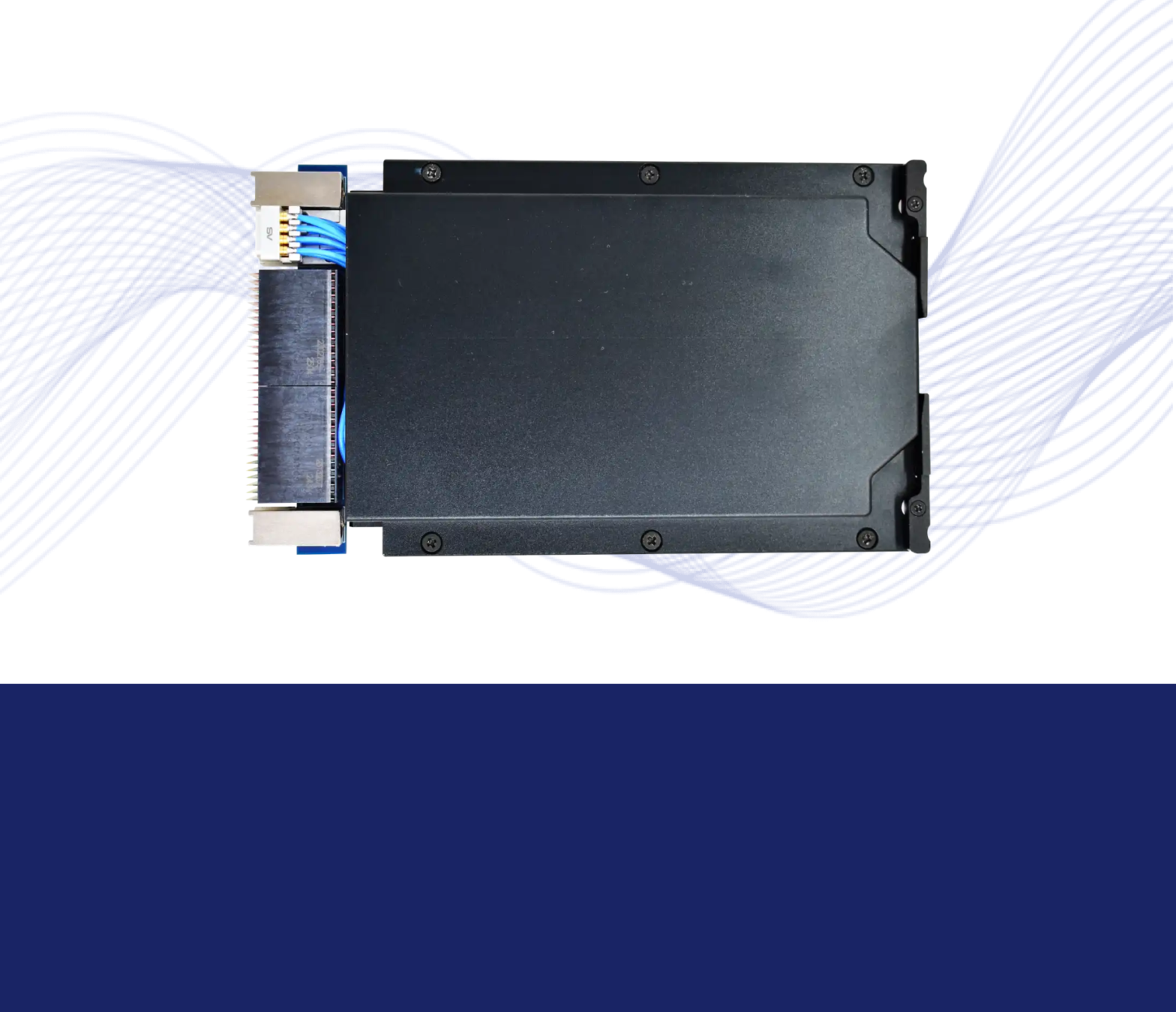

Develop 3U VPX conduction-cooled systems and RF connector layouts built for extreme conditions available in both industrial and MIL grade.

Learn More

End-to-End ODM Services

From carrier + SoM integration for SDR, EW, and radar to schematic, PCB layout, thermal, mechanical, and enclosure design, we provide complete product realization.

Learn More
