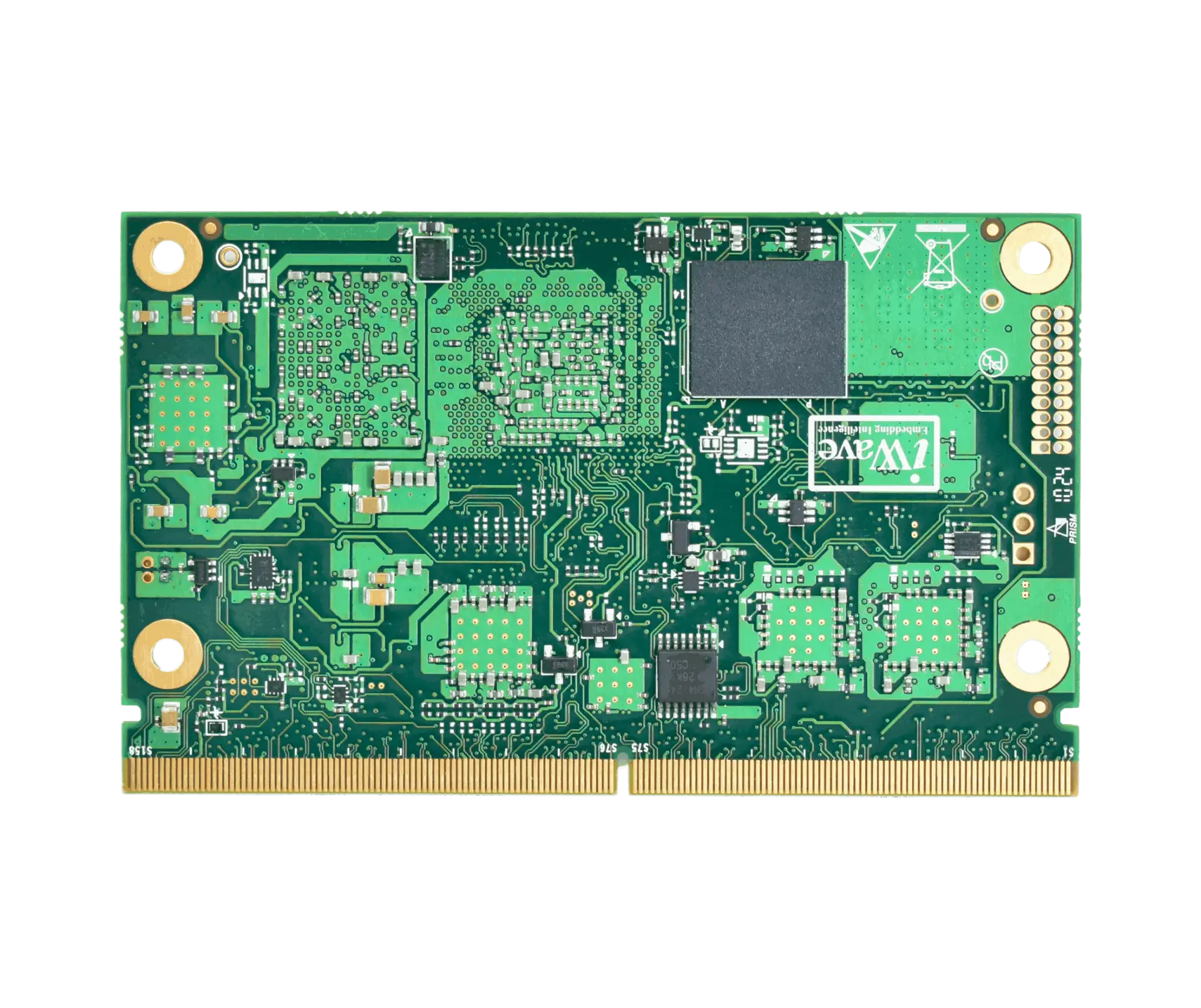

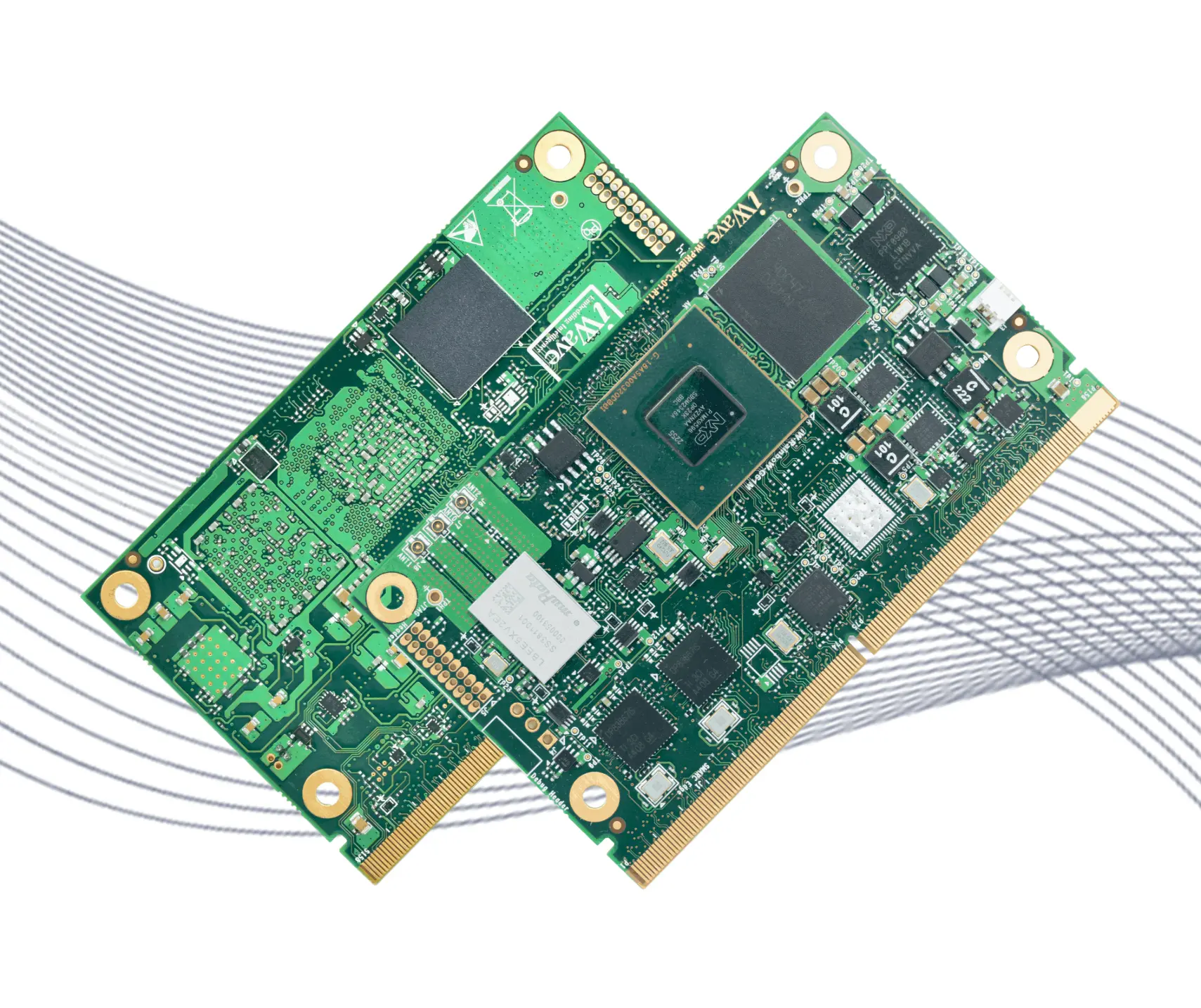

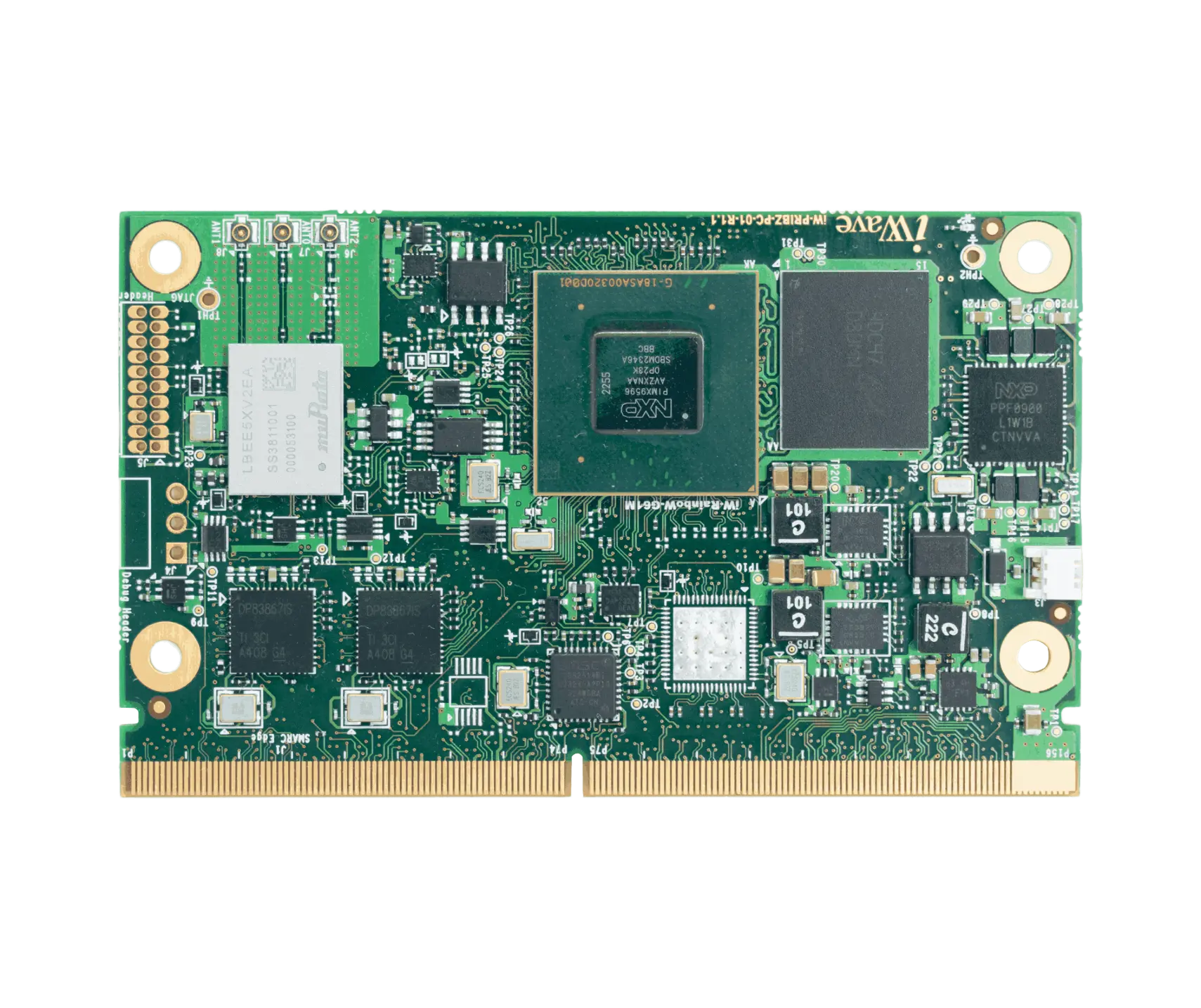

i.MX 95 SMARCSystem on Module
iG-G61M®
- i.MX 95 CPU with 6 Arm Cortex-A55 @2.0 GHz, 1 x Cortex-M33 @333MHz, 1 x Cortex-M7 @800MHz
- NPU with up to 2.0 TOPS Neural Network performance
- Up to 16GB LPDDR5
- 16GB eMMC Flash (Expandable) & 16Mb QSPI Flash
- Wi-Fi 6 & Bluetooth 5.3 Connectivity
- SMARC v2.1.1 compatible SOM
Documents
Documents
Design Support
| Features | Details |
|---|---|
| CPU | i.MX 95: 6 x Cortex-A55 @2.0 GHz,1 x M33 core @333MHz, 1 x M7 core @800MHz |
| Memory & Storage | Up to 16GB LPDDR5 16GB eMMC Flash (Expandable) EEPROM QSPI Flash- 16Mb |
| Other | Gigabit Ethernet PHY Transceiver x 2 USB 2.0 4-Port Hub RTC Controller MIPI DSI to HDMI Controller (Optional) Wi-Fi 6 & Bluetooth V5.3 (Optional) TPM2.0 (Optional) Temperature Sensor (Optional) Clock Generator JTAG Header (Optional) |
| Edge Connector Features | Gigabit Ethernet x 2 Port (through On-SOM Gigabit Ethernet PHY transceiver) 10G Ethernet x 1 Port PCIe 3.0 x 2 Ports (1Lane) USB2.0 Host x 4 Port (through On-SOM USB Hub) USB 3.0 OTG x 1 Port SD (4bit) x 1 Port LVDS x 2 Ports HDMI x 1 Port (Optional) MIPI Camera x 2 Port (1 x 4lane, 1 x 2lane) I2S (Audio Interface) x 2 Ports SPI x 2 Ports CAN x 2 Ports Data UART (with CTS & RTS) x 2 Ports Data UART (without CTS & RTS) x 1 Port Debug UART x 1 Port I2C x 3 Ports 14 GPIOs |
| OS Support | Linux 6.12.20 BSP Android 15_2.0.0 (based on L6.12.20) |
| General Features | Power Input: 5V, 2.5A through SMARC Edge Connector Form Factor: 82mm x 50mm Operating Temperature: -40°C to +85°C Environment Specification: REACH & RoHS3 Compliant |

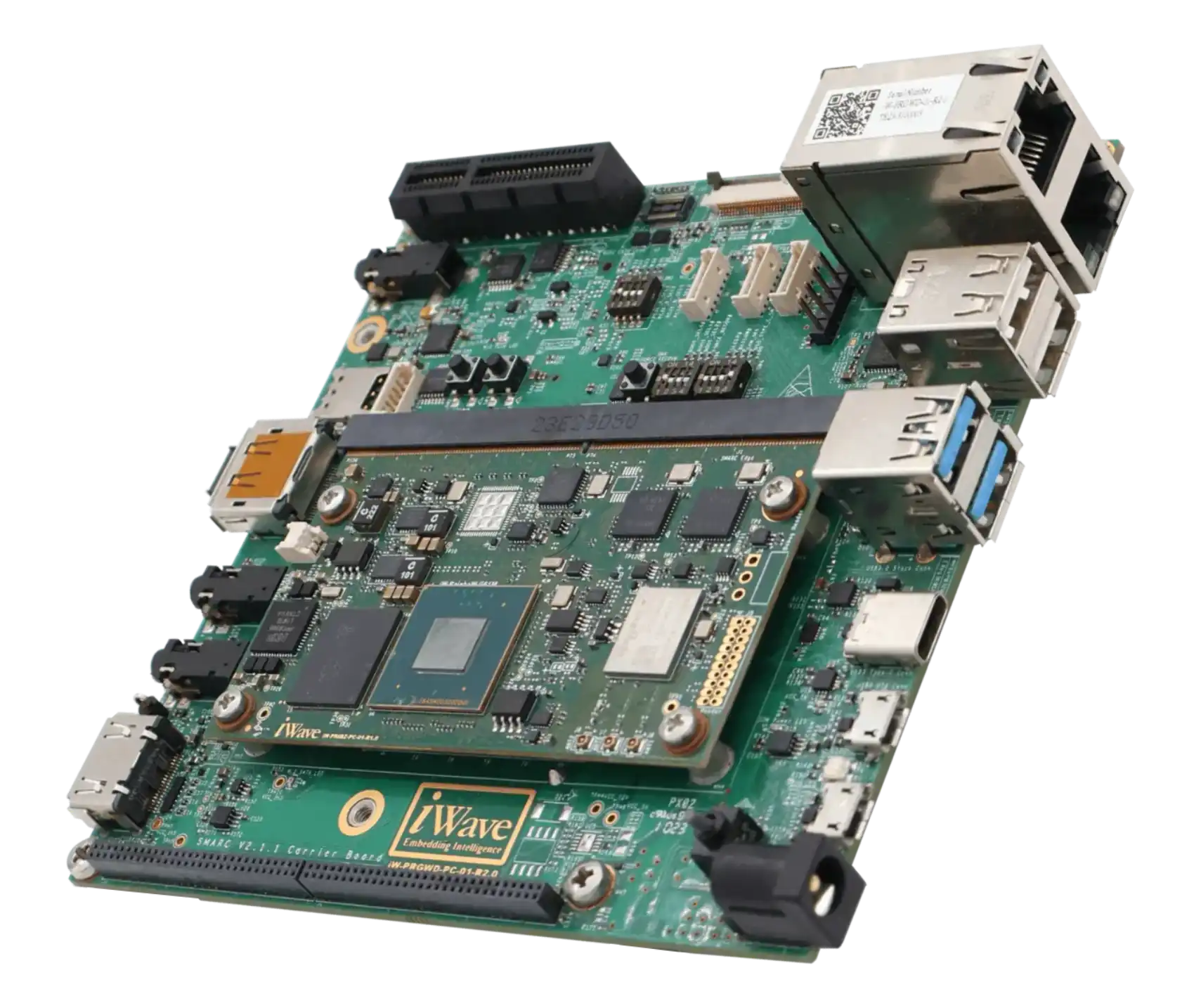

- Gigabit Ethernet Jack x 2
- M.2 PCIe connector x 1
- PCIe X 4 connector x 1
- USB 2.0 Host Type-A x 2
- USB 2.0 OTG Type micro-AB x 1 (Optional)
- USB 3.0 Host Type-A/ Type-C OTG
- Standard SD x 1
- HDMI-Type A Connector (Optional)
- 20pin LVDS Connector
- 40pin LVDS Connector
- MIPI CSI Camera Connector
- Audio In & Out Jack through I2S Codec x 2
- Full Function UART Header x 1
- Full Function RS232 Header x 1
- RTC with a backup battery
- CAN Header x 2
- Debug UART through Micro USB Port
Thermal design plays a crucial role in highly integrated System on Modules. iWave provides an efficient Heat Sink solution for the i.MX 95 SMARC SOM
Enclosure is essential for any Devkit, and iWave offers rugged aluminum and metal sheet options that protect the device while allowing full access to all major ports.
