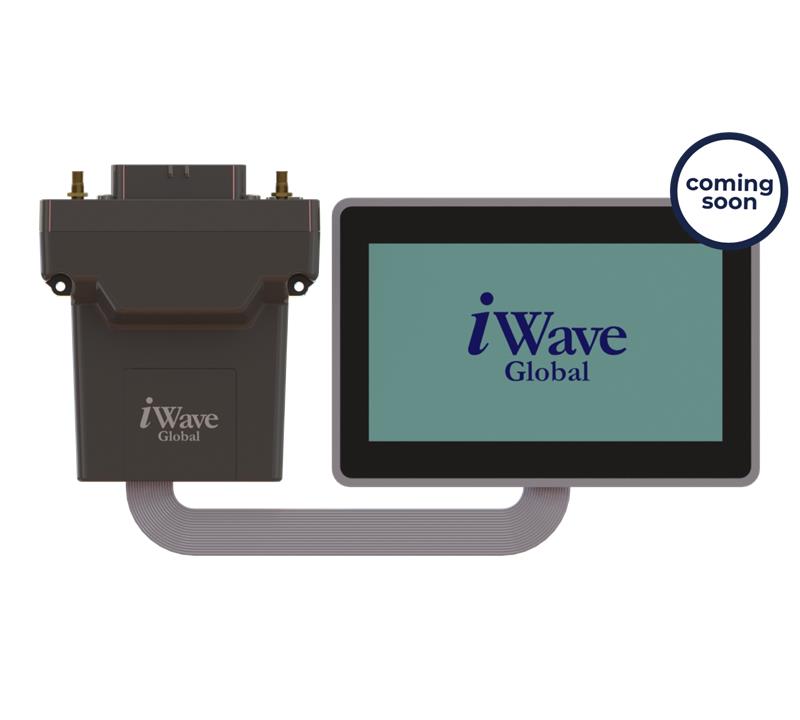

Telematics EdgeView
iG-G76D®
- Powered by i.MX 93 Micro-Processor Arm Cortex-A55 Cores
- 7”, 10.1”, 12.1” & Custom Size Colour LED display with touch
- 4 CAN-FD Ports
- Integrated Hardware Secure Element
- Wireless Connectivity: Upgrade Option to 5G (Optional), LTE Cat 4, Wi-Fi 6 & Bluetooth 5.3
- Standard & Automotive Ethernet, Digital Inputs, Digital Outputs, Analog Inputs, RS232
- IP65 protection class
- LINUX 6.6.52 BSP with software flexibility
- GMSL Camera [Optional]
- Ideal for fleet management, off-highway telematics, EV intelligence, Predictive Analytics, Security alerts, DMS, OMS and Surveivellance
Documents
Software
Mechanical
| Features | Details |
|---|---|
| Processor Core | CPU: NXP i.MX 93 Micro-Processor Arm Cortex-A55 Cores MCU: NXP LPC 804 RAM: 1GB LPDDR4X (Expandable up to 2GB) FLASH: 8GB eMMC Flash (Expandable up to 64GB) |
| Wireless Communication | Cellular: Upgrade Option to 5G RedCap (3GPP R17)1 LTE CAT 4 Global Skew & Western Module Wi-Fi 802.11a/b/g/n/ac/ax Bluetooth: BLE 5.3 |
| CAN | 4 CAN-FD Ports |
| Ethernet | 1 x Port (100 Base-TX) 1 x Port (100 Base-T1) |
| Digital Input | 2 x Channels (32V Maximum) 1 x IGN input |
| Analog Input | 2 x Channels (0-32V). Through the on-board MCU. |
| Digital Output | 2 x Channels (5V-24V, 2A Sink) |
| Display | 7” Colour LCD display
10.1”,12.1” or Custom size display can be supported |
| Camera | GMSL Camera1 |
| Other Serial Interfaces | 1 x RS232 1 x RS485 [Half Duplex]1 |
| GNSS | GPS/GLONASS/BeiDou/Galileo |
| Sensors | Accelerometer, Gyroscope, Magnetometer |
| Antenna | SMA Connectors: 1 x LTE Primary, 1 x LTE Diversity, 1 x GNSS RP-SMA Connector: 1 x Wi-Fi, 1 x BT |
| Security Module | Integrated Hardware Secure Element Crypto-Automotive Security IC Microchip TA100 |
| Power Characteristics | Power: 9V – 32V Stand-by Mode: 10mA Deep Power Down Mode: <1.5mA |
| Internal Battery | 1500mAh Lithium-ion Polymer |
| Display Temperature2 | Operating Temperature: -20°C to +70°C Storage Temperature: -30°C to +80°C |
| Telematics Display Controller Temperature2 |
Operating Temperature: -40°C to +70°C Storage Temperature: -40°C to +85°C |
| Software | Operating System: Linux 6.6.52 Protocols1: Socket CAN, ISO15765-4, CAN open, J1939, UDSonCAN, Display with touch and camera |
| Security Suite1 | Secure boot / Secure storage |
| Enclosure | Dimension: Telematics Display controller – 140 x 124 x45mm (Approximately) Display unit – 194 x 224 mm (Approximately) Protection Class: IP65 Mounting Options: Panel mount |
Note:
¹ Optional features: For more information, please contact iWave sales team at mktg@iwave-global.com
² Temperature range subject to use case and operational functionality
